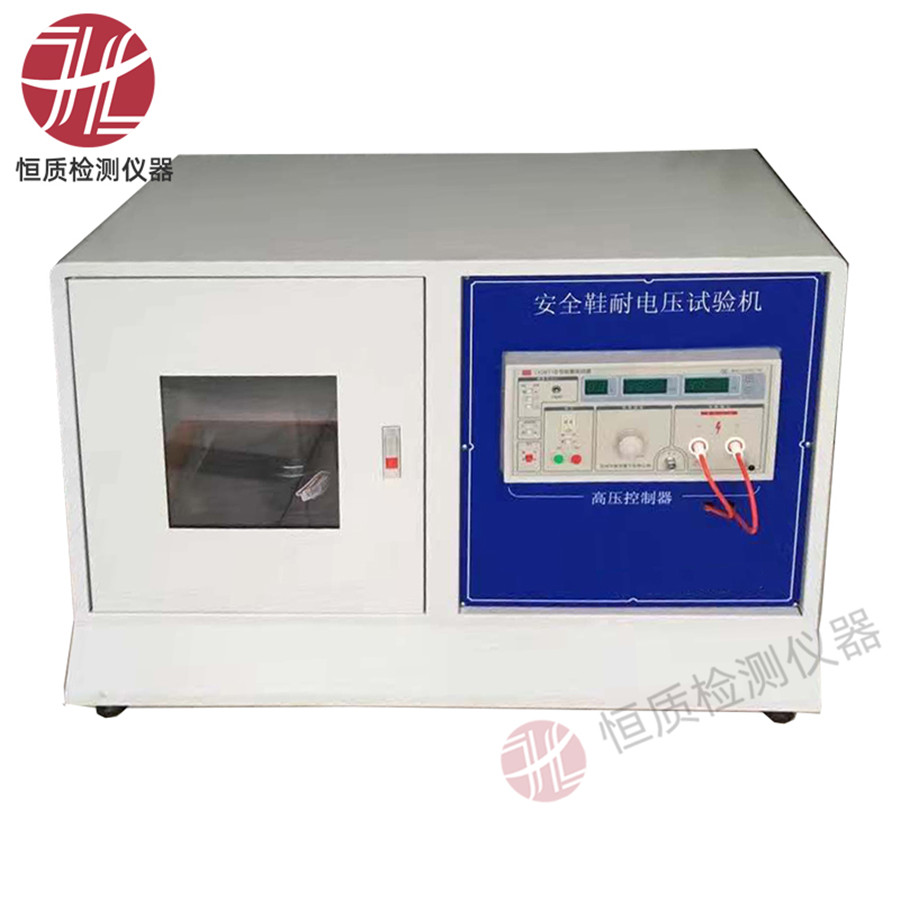

HZ-8028 Safety Footwear Dielectric Withstand Voltage Tester

The HZ-8028 tester measures dielectric withstand voltage and leakage current for safety footwear, appliances, cables, electronics, rubber foam and other insulating products.

Applicable standards: IEC, ISO, BS, UL and JIS methods.

Technical specifications:

1. Test voltage: AC/DC 0–10 kV.

2. AC leakage-current ranges: 0–2, 2–20 and 2–50 mA.

3. DC leakage-current ranges: 0–2, 2–20 and 2–10 mA.

4. Accuracy: 5% of full scale.

5. Alarm setting: AC 0.3–2, 2–20 or up to 50 mA; DC 0.3–10 mA.

6. Test time: 1–99 seconds; transformer capacity: 500 VA.

7. Operating environment: 0–40°C, up to 75% RH.

8. Dimensions: 390 × 400 × 200 mm; weight: 85 kg.

9. Power: AC 220 V ±10%, 50 Hz ±2 Hz.
