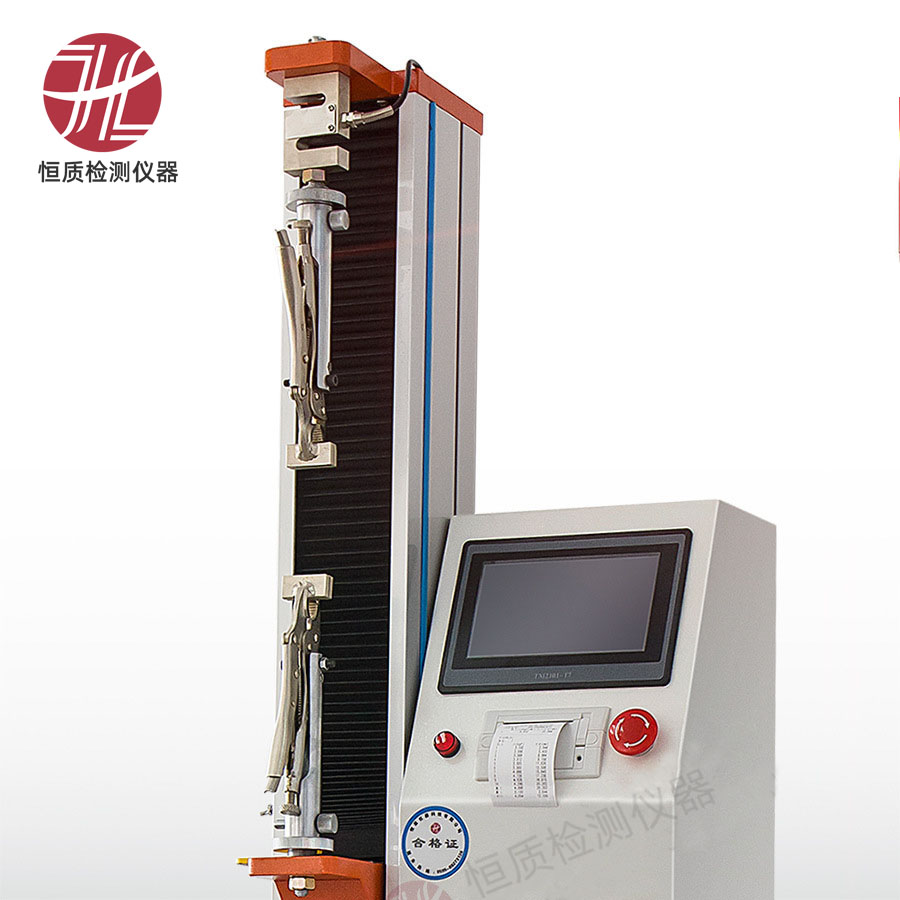

The HZ-1004 microcomputer tensile testing machine combines electronic measurement with mechanical transmission. It provides a broad loading-speed and force range with accurate, sensitive control of load and displacement. Its straightforward operation makes it suitable for laboratory testing and production-line quality control.
The machine can perform tensile, compression, bending, shear, peel, tear and two-point extension tests on textiles, rubber, plastics, synthetic leather, adhesive tapes, films, composites, electronic materials and metals. An extensometer is required for two-point extension measurement.
Applicable standard:
GB/T 16491-1996, Electronic Universal Testing Machines.
Technical specifications:
| Capacity | 10, 50, 100, 200 or 500 kg |
| Force units | N, kN, kg |
| Load resolution | 1/10,000 |
| Load accuracy | ±0.2% |
| Force amplification | Stepless |
| Maximum travel | 1,000 mm |
| Test speed | 50–300 mm/min, adjustable |
| Speed accuracy | ±0.5% |
| Displacement resolution | 0.1 mm |
| Power supply | Single-phase AC 220 V |
| Power | 400 W |
| Dimensions | Approx. 600 × 450 × 1,680 mm |
| Weight | Approx. 70 kg |
