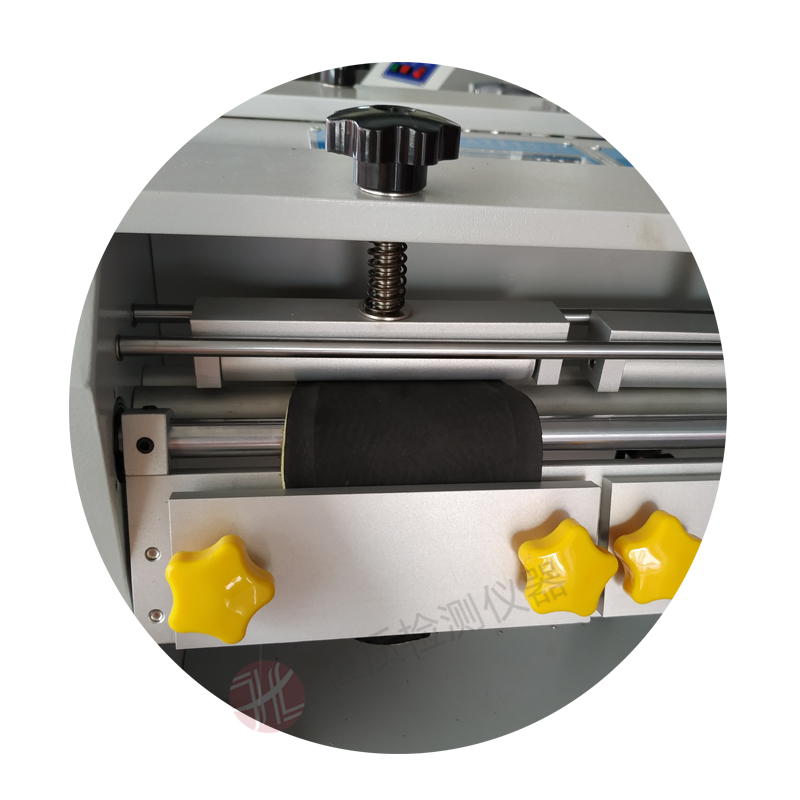

HZ-2025 Ross Sole Flexing Tester

The HZ-2025 Ross sole flexing tester evaluates the flex resistance of rubber products, footwear soles, PU, PVC, TPR and foam materials.

Applicable standards: ASTM D1052, ISO 5423, ISO 4643 and SATRA PM60.

Technical specifications:

1. Fixtures: six stations, testing up to twelve specimens per run.

2. Flexing angle: 90°.

3. Test speed: 100 ± 3 cycles/min.

4. Counter: LCD, programmable from 0 to 999,999 cycles.

5. Dimensions: 78 × 48 × 64 cm.

6. Weight: approx. 96 kg.

7. Power supply: single-phase AC 220 V, 50 Hz, 3 A; destination-specific versions available.
