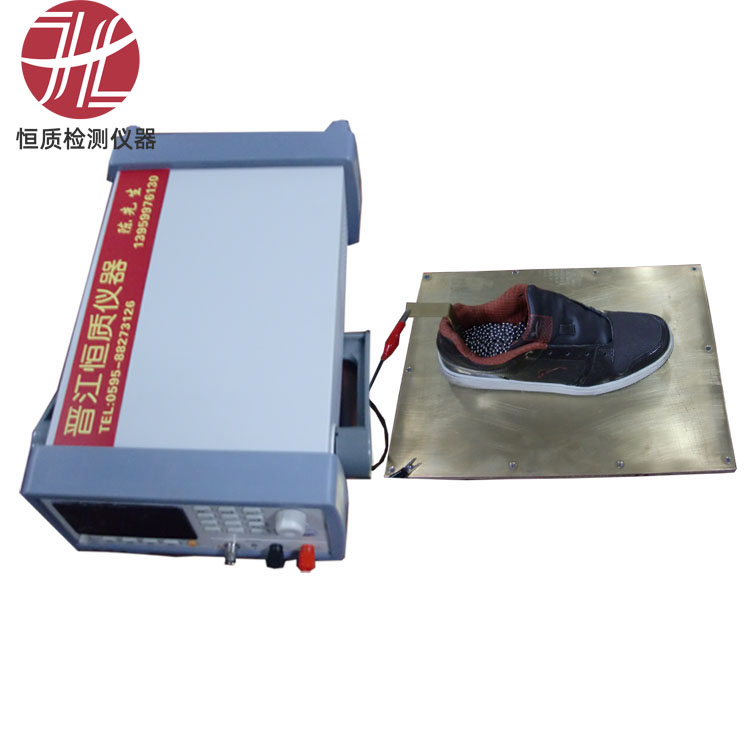

HZ-2020A Safety Footwear Antistatic Tester

The HZ-2020A safety footwear antistatic tester measures the electrical resistance of footwear materials and finished safety shoes.

Applicable standard: GB/T 20991-2007.

Technical specifications:

1. Resistance range: 100 kΩ–9,999 MΩ.

2. Accuracy: ±(2% of reading + 0.2% of full scale).

3. Test voltages: DC 100, 250, 500 and 1,000 V, ±2%.

4. Operating environment: 0–40°C and 20–90% RH.

5. Stainless-steel test plate: 300 × 400 mm.

6. Electrode medium: 4 kg of 5 mm stainless-steel balls.
