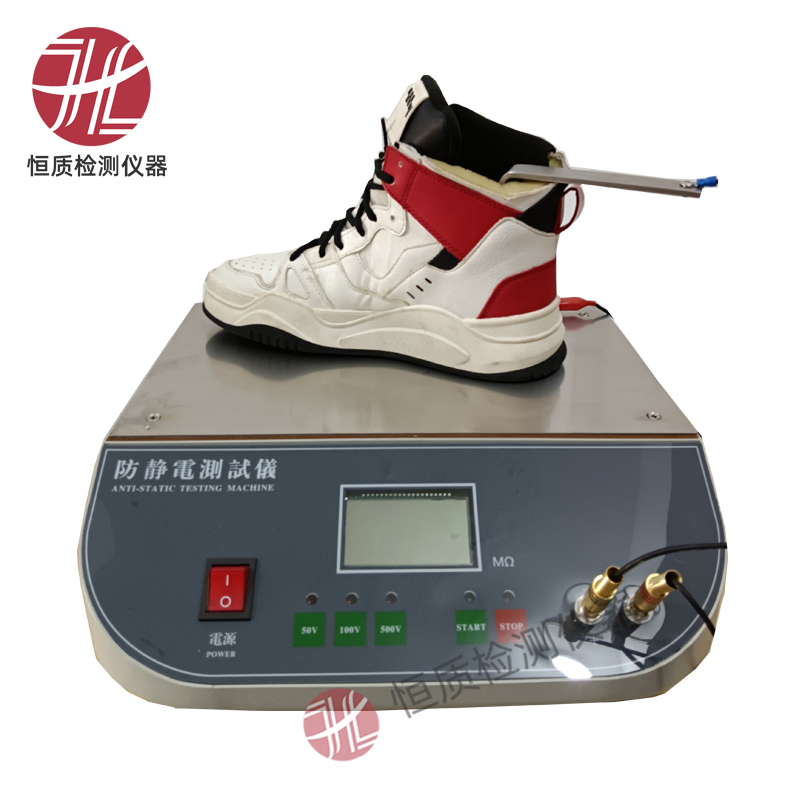

HZ-2020 Antistatic Footwear Tester

The HZ-2020 antistatic footwear tester measures resistance through a closed circuit formed by the specimen and stainless-steel ball electrodes.

Applicable standards: GB/T 20991, EN ISO 20344, CSA/CAN-Z195 and SATRA methods.

Technical specifications:

1. Test voltages: DC 50, 100 and 500 V.

2. Electrodes: 5 mm stainless-steel balls or a specified weight electrode.

3. Stainless-steel test plate.

4. Dimensions: 35 × 33 × 14 cm; weight: 11 kg.

5. Power: AC 220 V, 50 Hz.
