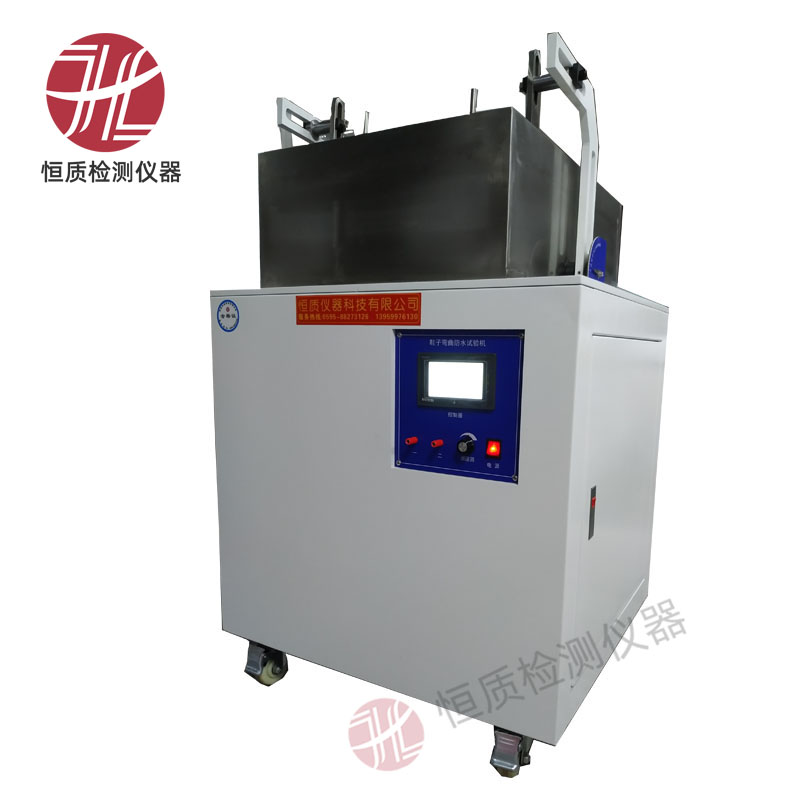

HZ-2010 Whole Shoe Dynamic Water Penetration Tester

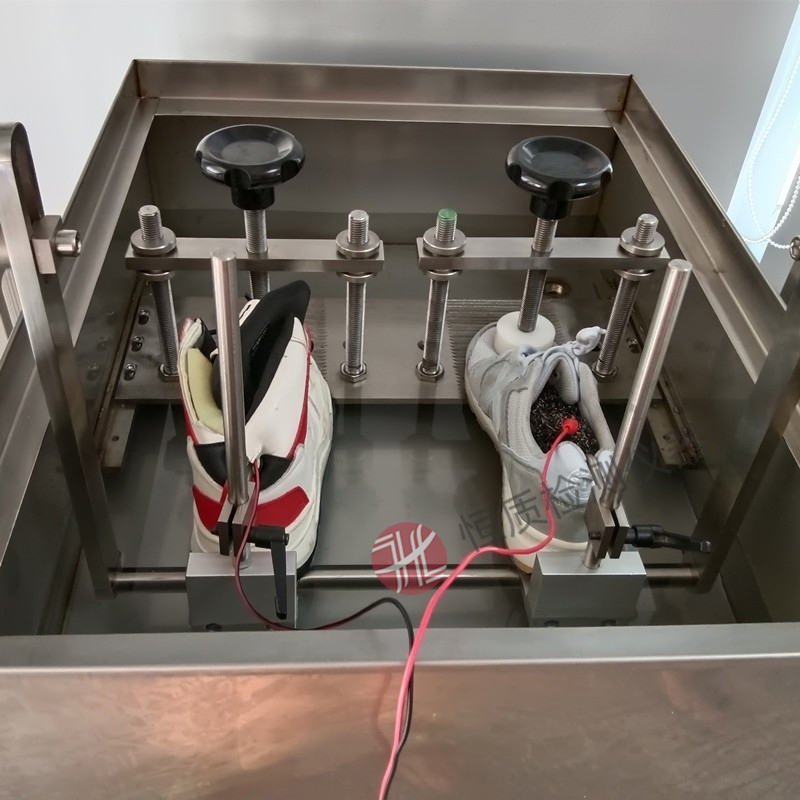

The HZ-2010 whole shoe dynamic water penetration tester evaluates the water resistance of finished footwear by repeatedly flexing two shoes under controlled wet conditions.

Applicable standards: ASTM D2099, SATRA PM34 and ALCA E56.

Technical specifications:

1. Test stations: 2.

2. Flexing speed: 140 ±10 cycles/min; adjustable from 30 to 150 cycles/min.

3. Angle settings: 10°, 15°, 20°, 25°, 30°, 35° and 45°; adjustable over 0–45°.

4. Counter: LCD, 0–999,999 cycles.

5. Manual drainage and automatic water-ingress sensing.

6. Dimensions: 65 × 83 × 128 cm; weight: 186 kg.

7. Power: AC 220 V.
