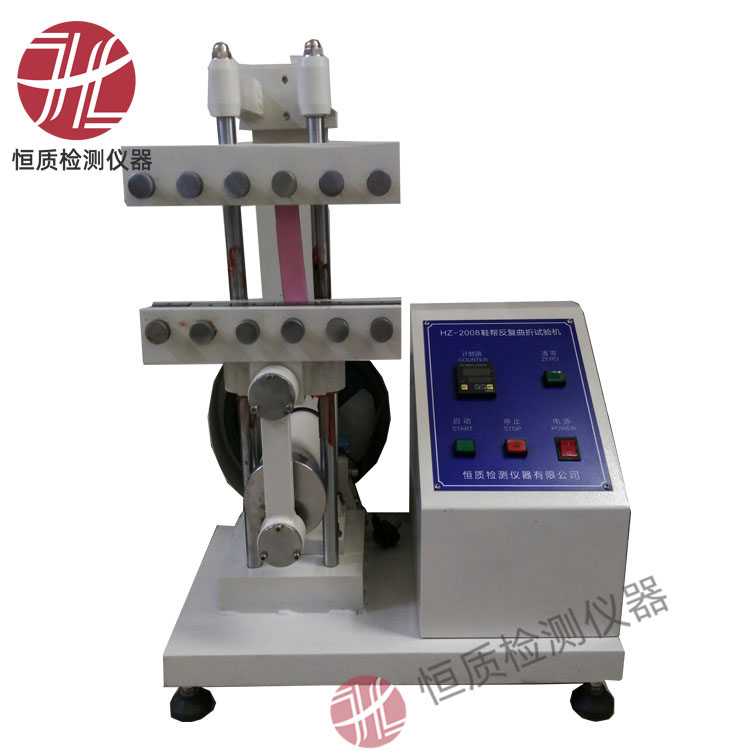

HZ-2008 Rubber Flexing Tester

The HZ-2008 rubber flexing tester repeatedly bends rubber, sole and PU specimens through a right angle to evaluate degradation, damage and crack growth.

Applicable standards: JIS K6301, ASTM D813, BS 903, HG4-836 and GB 13934.

Technical specifications:

1. Grip spacing: 19–75 mm.

2. Lower-holder stroke: 57 mm.

3. Test speed: 300 cycles/min.

4. LCD counter: 0–999,999 cycles.

5. Dimensions: 55 × 44 × 69 cm; weight: 78 kg.

6. Power: single-phase AC 220 V, 50 Hz, 3 A.
