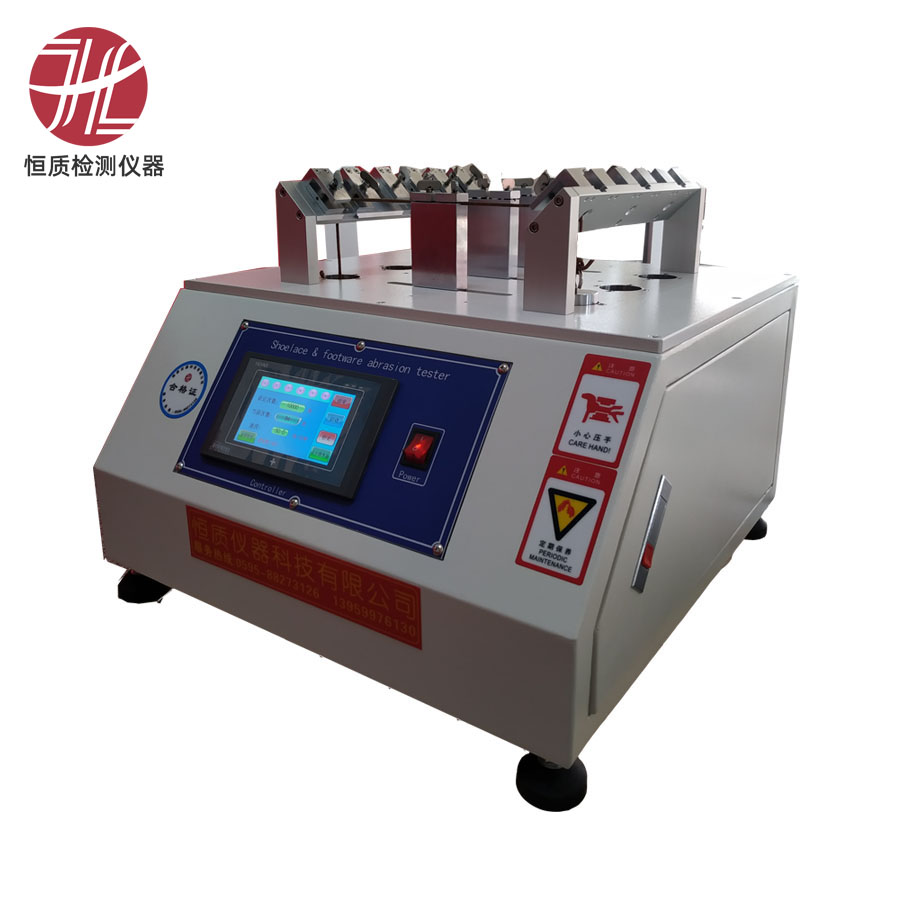

HZ-2004 Shoelace and Eyelet Abrasion Tester

The HZ-2004 shoelace and eyelet abrasion tester repeatedly draws laces through eyelets to evaluate wear under controlled load, stroke and speed.

Applicable standards: SATRA PM93 and BS 5131 Section 3.6.

Technical specifications:

1. Test stations: 6.

2. Applied load: 455 ±5 g.

3. Stroke: 76 ±2 mm; speed: 100 ±5 cycles/min.

4. LCD counter; test angle: 52.2°; fixture distance: 120 mm.

5. Test plate: 25 × 25 × 3 mm; eyelet diameter: 4.5 mm.

6. Dimensions: 55 × 56 × 40 cm; machine weight: 62 kg excluding weights.

7. Power: single-phase AC 220 V, 3 A.
