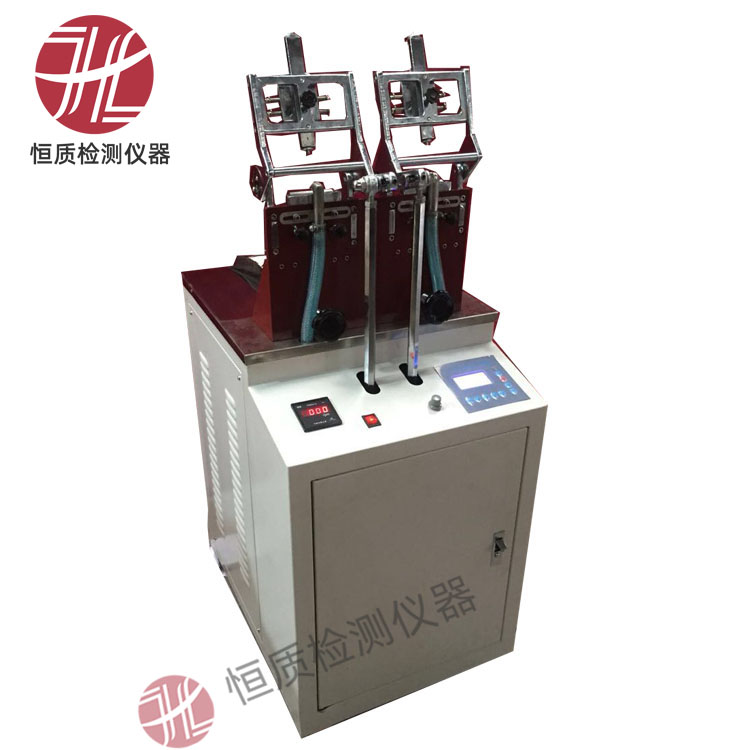

HZ-2002 GB Whole Shoe Flexing Tester

The HZ-2002 whole shoe flexing tester evaluates the flex resistance of rubber, TPR, PU and plastic soles and finished footwear.

Applicable standard: GB/T 3903.1-94.

Technical specifications:

1. Test stations: 2 shoes.

2. Flexing speed: 230 ±10 cycles/min; adjustable from 100 to 300 cycles/min.

3. Flexing angle: 0–50°; optionally adjustable to 90°.

4. Counter: six digits, 1–999,999 cycles; stop error ±10 cycles.

5. Dimensions: 600 × 400 × 600 mm; weight: 300 kg.

6. Power: AC 220 V ±10%, 50 Hz.
