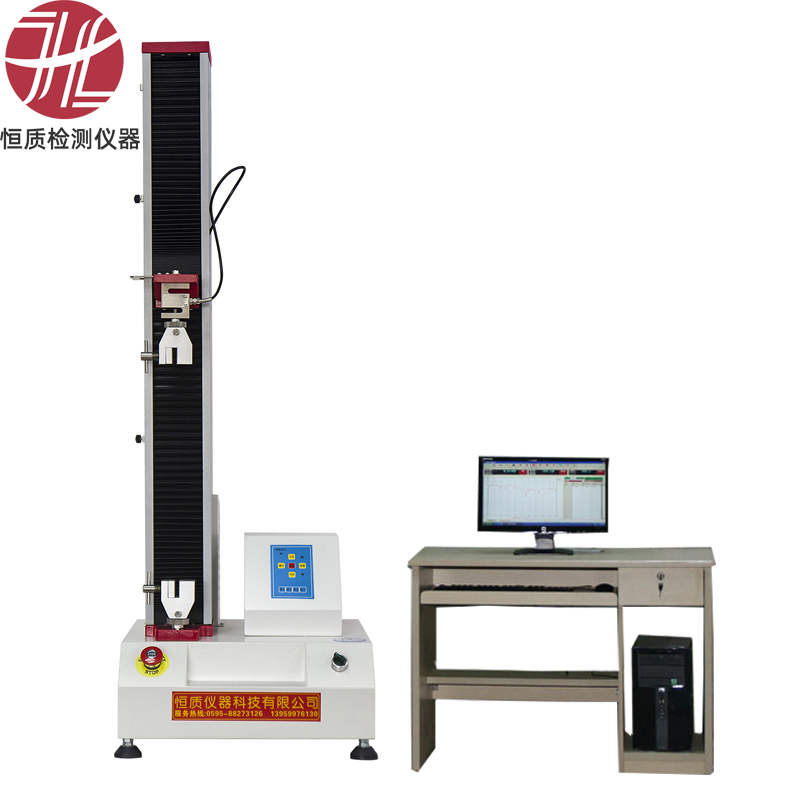

HZ-1006C Tabletop Computerized Material Testing Machine

The HZ-1006C tabletop computerized material testing machine is designed for tests below 1 kN, including force, tensile strength, flexural strength, compression strength, modulus, elongation and yield strength.

Technical specifications:

1. Capacity options: 10, 50, 100, 200, 500 and 1,000 N.

2. Accuracy class: Class 1 or Class 0.5; force accuracy ±1% or ±0.5%.

3. Test space: 500 mm.

4. Test speed: 50–300 mm/min.

5. Electronic travel limits, fast/slow/jog controls and automatic or manual return.

6. Standard tensile grip; custom grips are available.

7. Dimensions: 450 × 550 × 1,400 mm; weight: 60 kg.

8. Power: AC 220 V, 50 Hz.
