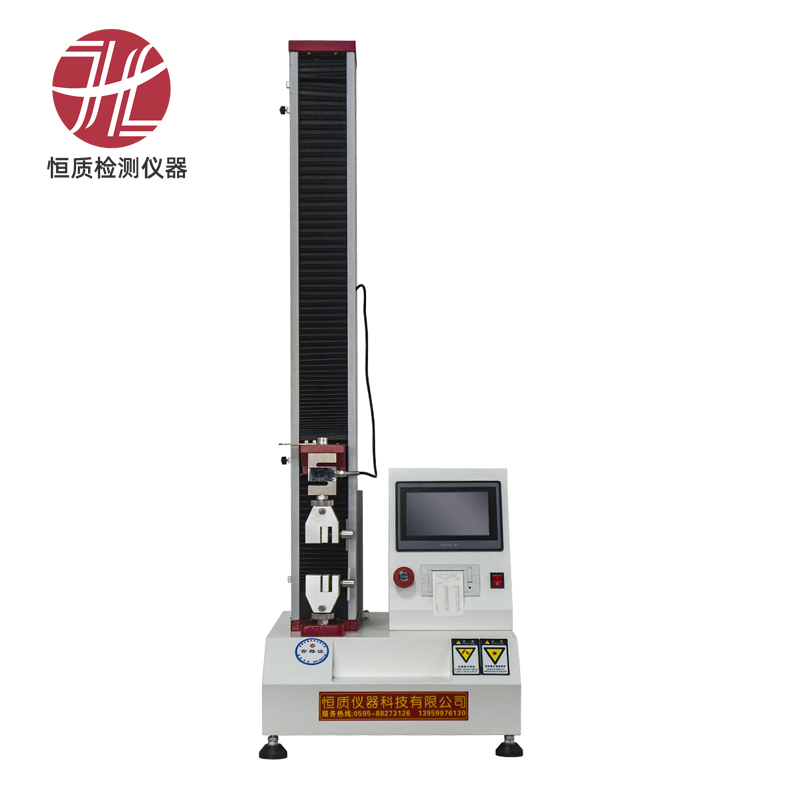

HZ-1006A Tabletop Tensile Testing Machine

The HZ-1006A tabletop tensile testing machine supports tensile, compression, bending, shear, 90° and 180° peel, tear and elongation tests on textiles, rubber, plastics, synthetic leather, tape, adhesives, films, composites, electronics and metals.

Applicable standard: GB/T 16491-1996.

Technical specifications:

1. Capacity options: 1, 5, 10, 20, 50 and 100 kg.

2. Units: kg, lb and N.

3. Test space: 500 mm; speed: 50–300 mm/min.

4. Thermal printer; stores ten results and calculates averages and break force.

5. Overload, emergency-stop and travel-limit protection.

6. AC motor: 120 W.

7. Dimensions: 47 × 55 × 133 cm; weight: 105 kg.

8. Power: single-phase AC 220 V, 15 A.
