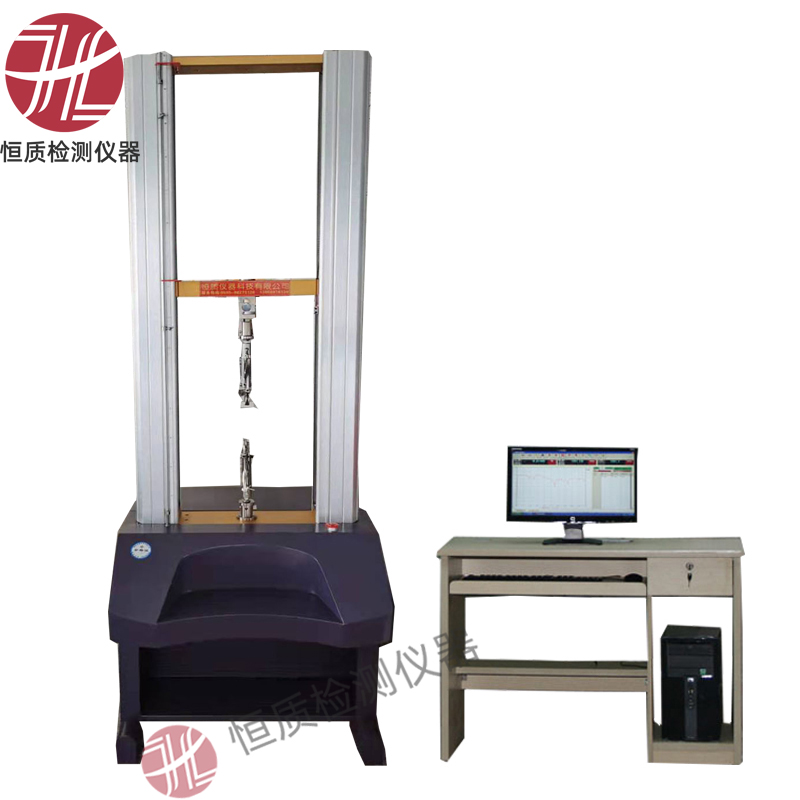

HZ-1001A Computerized Servo Tensile Testing Machine

The HZ-1001A computerized servo tensile testing machine evaluates force, tensile strength, flexural strength, compression strength, modulus, elongation and yield strength. It supports tensile, compression, bending, shear, peel, tear, elongation, cyclic and other tests for a wide range of materials.

Technical specifications:

1. Capacity options: 50 N to 20 kN across 23 available ranges.

2. Accuracy class: Class 1 or Class 0.5; force accuracy ±1% or ±0.5%.

3. Effective force range: 0.2–100% or 0.4–100% of full scale.

4. Tensile space: 1,000 mm; configurable for the application.

5. Test speed: 0.001–1,000 mm/min.

6. Displacement accuracy: ±0.5% or ±0.2%; deformation accuracy ±0.5%.

7. Electronic travel limits, fast/slow/jog controls and automatic or manual return.

8. Standard tensile grips; custom grips are available.
