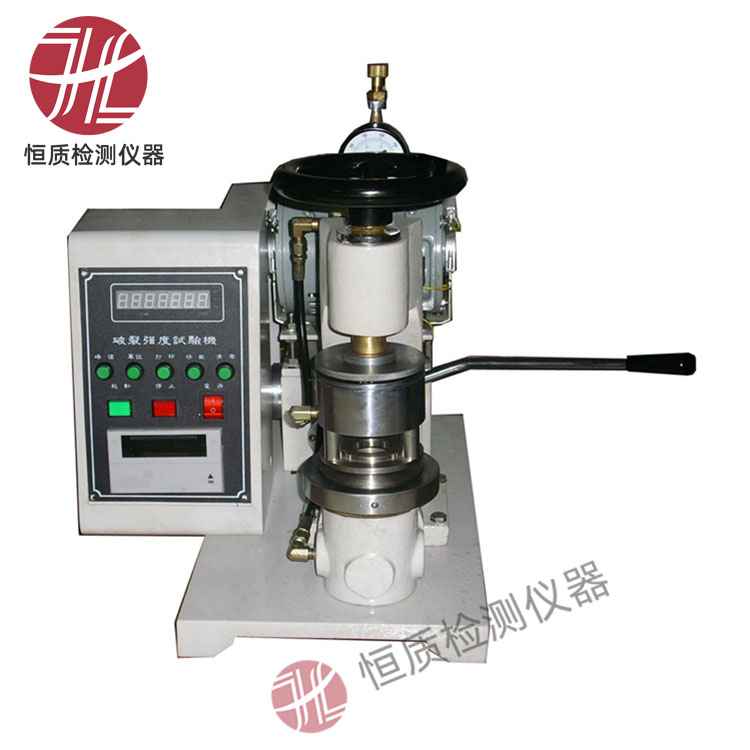

HZ-2117C Semi-Automatic Bursting Strength Tester

The HZ-2117C semi-automatic bursting strength tester measures the burst resistance of base paper, corrugated board, leather, fabrics and synthetic leather.

Applicable standards: ISO 2759, GB 6545, JIS P8112, JIS L1018, ASTM D2210 and TAPPI T403.

Technical specifications:

1. Pressure-gauge sensing with blue LCD display.

2. Capacity: up to 100 kg/cm².

3. Low-pressure ranges: select two from 0–3, 0–6, 0–12 and 0–15 kg/cm².

4. Printable results.

5. Vibration-resistant 1/4 HP motor.

6. Dimensions: 34 × 55 × 49 cm; weight: 62 kg.

7. Power: single-phase AC 220 V, 2.6 A.
