HZ-2117B Automatic Bursting Strength Tester

The HZ-2117B automatic bursting strength tester measures the bursting strength of leather, fabrics, paperboard and related materials.

Applicable standards: ASTM D2210, TAPPI T403, JIS P8112, JIS L1018 and JIS L1004.

Technical specifications:

1. Sensing: pressure transducer.

2. Display: digital.

3. Units: kgf/cm², psi and kPa.

4. Capacity: high-pressure version 0–100 kg/cm²; low-pressure version 0–16 kg/cm²; resolution 0.1 kg/cm².

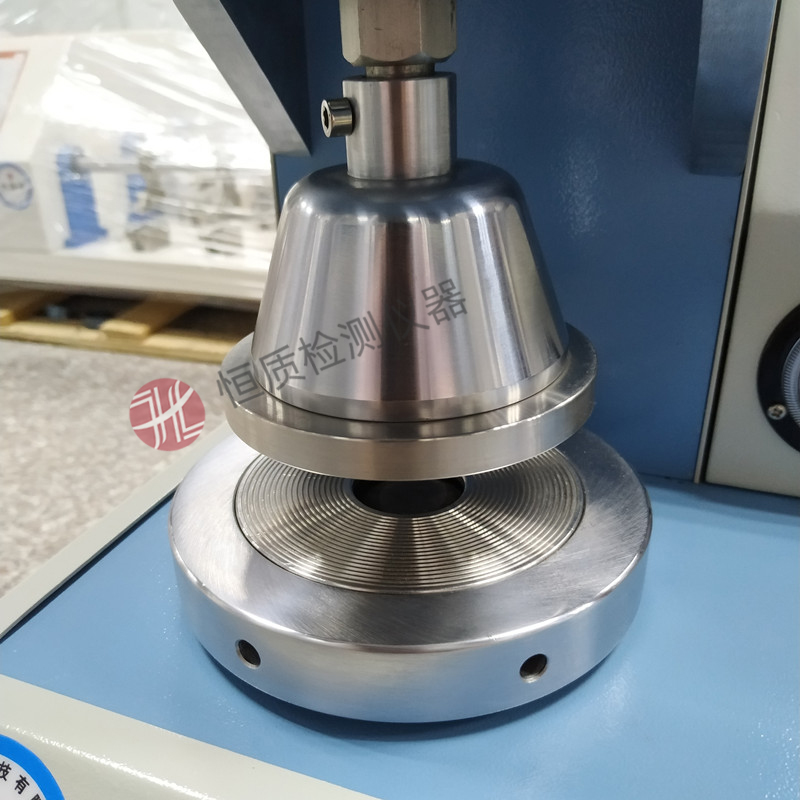

5. Clamp opening: high-pressure upper/lower ring 31.5 mm; low-pressure upper ring 30.48 mm and lower ring 31.75 mm.

6. Hydraulic-pressure gauge: 0–35 kg/cm².

7. Motor: AC 220 V, 90 W.

8. Dimensions: approx. 53 × 23.5 × 57 cm.

9. Weight: approx. 65 kg.

10. Power supply: single-phase AC 220 V, 1 A.

11. Power consumption: approx. 150 W.
