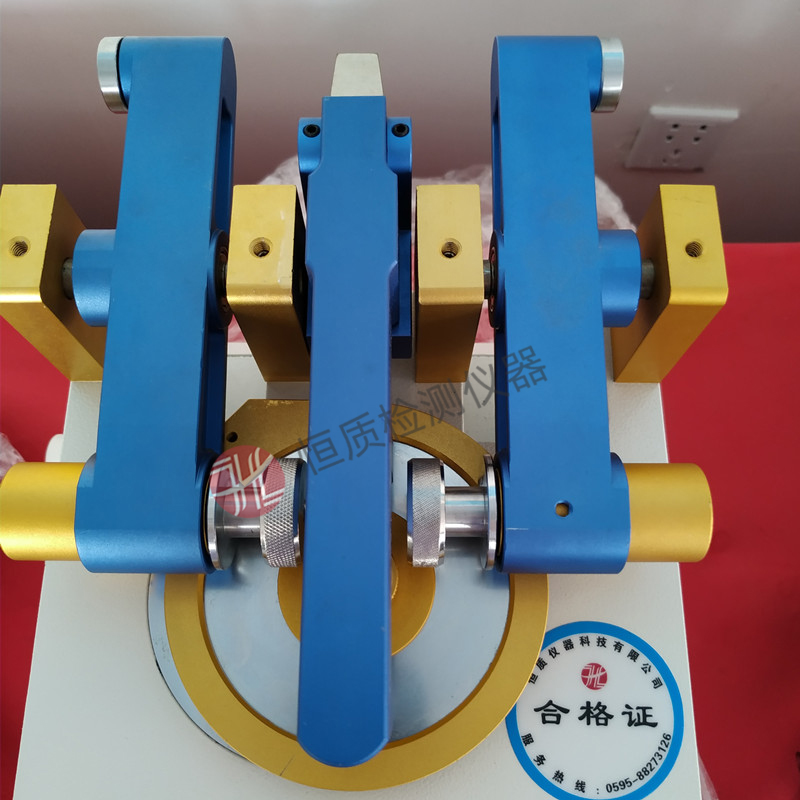

HZ-2108 Taber Abrasion Tester

The HZ-2108 Taber abrasion tester evaluates the wear resistance of leather, fabrics, plastics, coatings, paper, flooring, plywood, glass and natural rubber. A standard specimen is abraded with the specified wheel and load for a preset number of revolutions, after which wear is assessed visually or by mass loss.

Available abrasive wheels include H18, H22, CS17, S32 and S33.

Applicable standards: DIN 53754, DIN 53799, DIN 53109, DIN 52347, TAPPI T476, ASTM D1044, ASTM D3884 and ISO 5470.

Technical specifications:

1. Test weights: 250 g, 500 g and 1,000 g.

2. Specimen: 120 × 6.5 × 3 mm.

3. Counter: six-digit electronic display with automatic stop.

4. Dimensions: 300 × 430 × 300 mm.

5. Turntable speed: adjustable from 0 to 70 rpm.

6. Weight: 30 kg.

7. Power supply: AC 220 V, 50 Hz.
