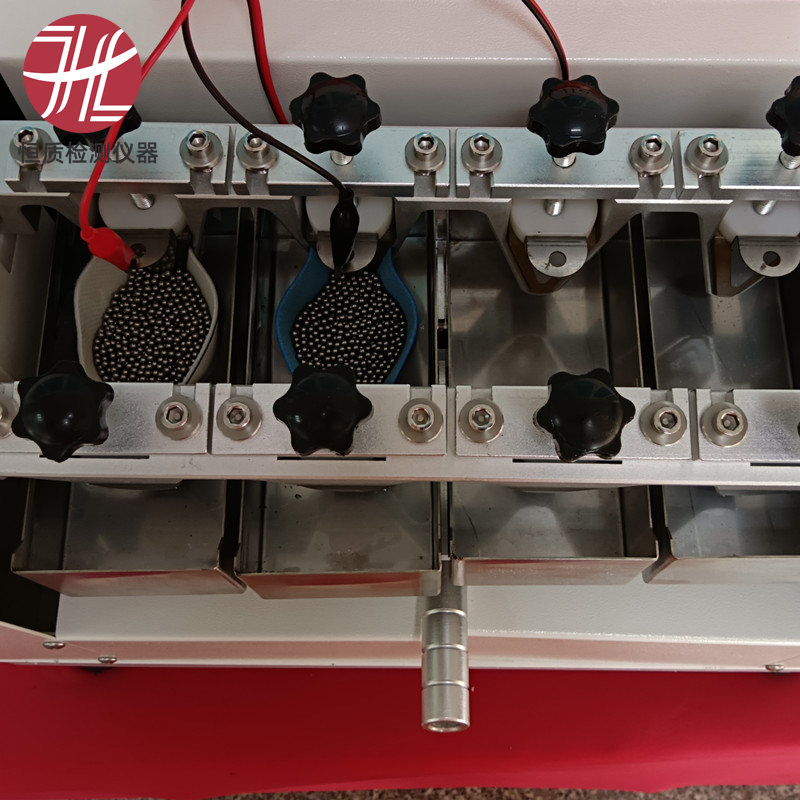

HZ-2114 Dynamic Leather Water Resistance Tester

The HZ-2114 dynamic leather water resistance tester evaluates water penetration in leather, PU and genuine leather under repeated flexing.

Applicable standards: ASTM D2099, SATRA PM34 and ALCA E56.

Technical specifications:

1. Test capacity: four specimens.

2. Specimen size: 4 × 4 in (114 × 114 ± 2 mm).

3. Load: 135 ± 5 g total of 3 mm steel balls.

4. Test displacement: 30 ± 1°.

5. Speed: 90 ± 5 cycles/min.

6. Counters: four LCD channels, 0–999,999.

7. Required balance accuracy: 0.01 g; balance not included.

8. Motor: 90 W.

9. Dimensions: 490 × 450 × 500 mm.

10. Weight: approx. 55 kg.

11. Power supply: single-phase AC 220 V, 5 A.
