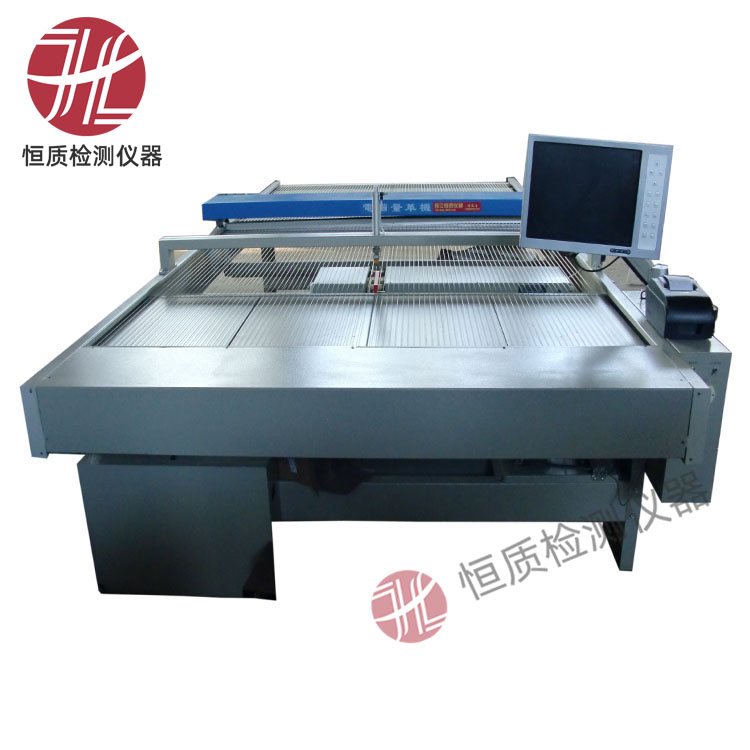

HZ-2109C Horizontal Digital Leather Measuring Machine

The HZ-2109C horizontal digital leather measuring machine measures the area of finished hides for tanneries, footwear factories and furniture manufacturers.

Technical specifications:

1. Working width: 180 cm; custom widths are available.

2. Dimensions: 400 × 190 × 80 cm.

3. Working speed: 25 m/min.

4. Motor power: 0.75 kW.

5. Measurement repeatability: within ±1% over ten accumulated measurements of the same reference plate.

6. Stepless calibration.

7. Dot-matrix printer with Chinese/English output.

8. Units: square feet, traditional Chinese square feet and square metres.
