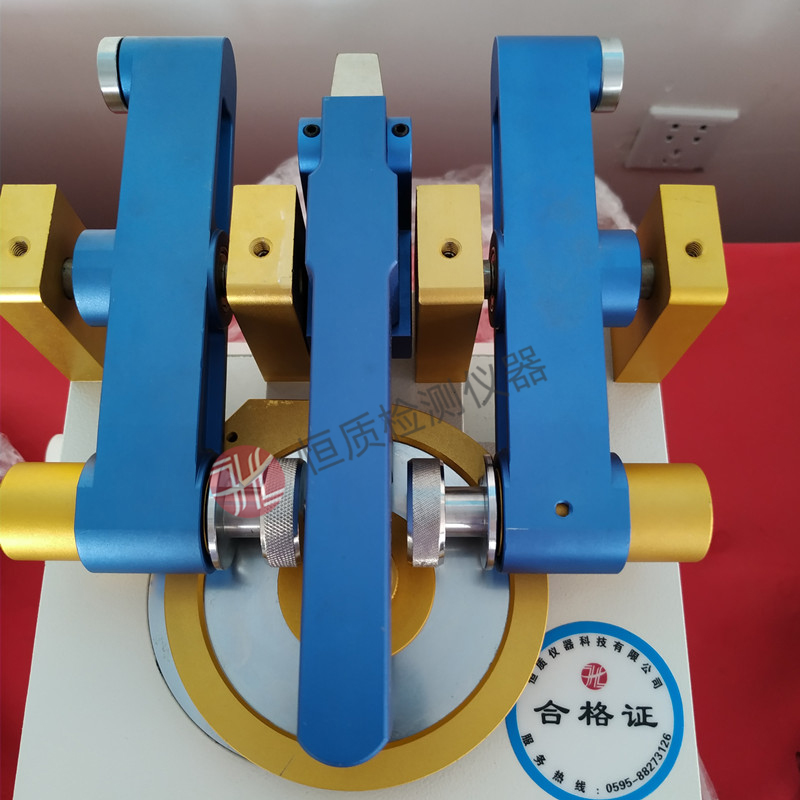

HZ-2108 Taber Abrasion Tester

The HZ-2108 Taber abrasion tester evaluates wear resistance by abrading a standard specimen with selected wheels and loads for a preset number of revolutions. Results may be assessed visually or by mass loss. Applications include leather, fabrics, plastics, coatings, paper, flooring, plywood, glass and natural rubber.

Available wheels include H18, H22, CS17, S32 and S33.

Applicable standards: DIN 53754, DIN 53799, DIN 53109, DIN 52347, TAPPI T476, ASTM D1044, ASTM D3884 and ISO 5470.

Technical specifications:

1. Test weights: 250 g, 500 g and 1,000 g.

2. Specimen: 120 × 6.5 × 3 mm.

3. Counter: six-digit electronic display with automatic stop.

4. Dimensions: 300 × 430 × 300 mm.

5. Turntable speed: adjustable from 0 to 70 rpm.

6. Weight: 30 kg.

7. Power supply: AC 220 V, 50 Hz.
