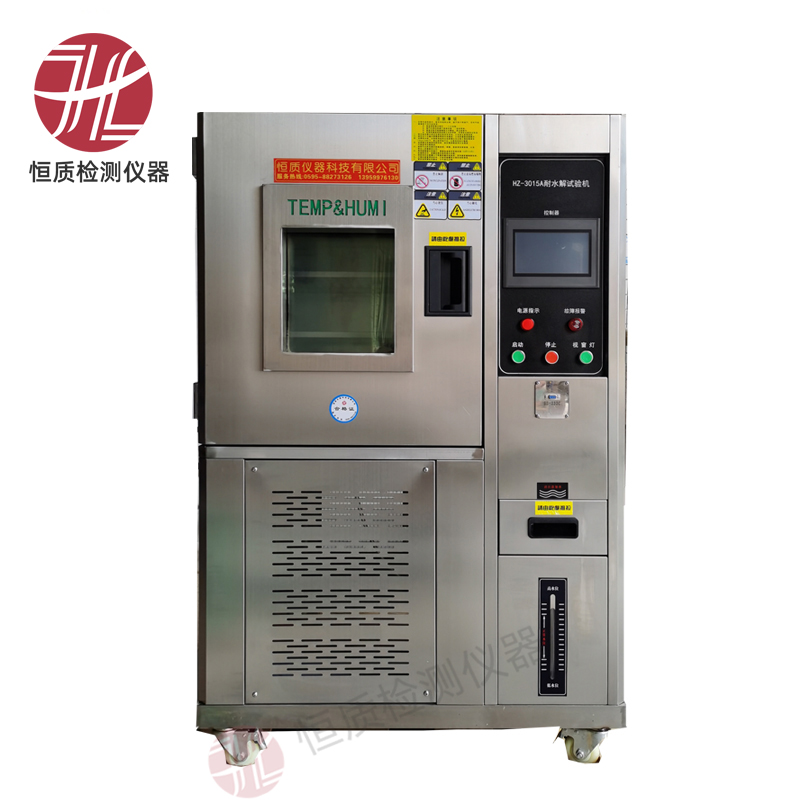

HZ-3015A Programmable Temperature & Humidity Test Chamber

The HZ-3015A programmable temperature and humidity test chamber simulates a wide range of environmental conditions. It is used to evaluate electronics, electrical appliances, food products, automotive components, rubber, plastics and metals, supporting product-quality and reliability improvement.

Applicable standards: GB/T 2423 and GJB 150A1/4.

Technical specifications:

1. Display resolution: temperature ±0.01°C; humidity ±0.1% RH.

2. Temperature range: −20°C to +150°C.

3. Temperature fluctuation: ±0.2°C.

4. Temperature uniformity: ±0.5°C.

5. Heating rate: 4–7°C/min from ambient to maximum temperature, nonlinear and unloaded.

6. Cooling rate: 0.7–1.5°C/min from ambient to minimum temperature, nonlinear and unloaded.

7. Humidity range: 20%–98% RH.

8. Humidity fluctuation: ±2.0% RH.

9. Humidity deviation: ±2%.

10. Internal dimensions: 400 × 400 × 500 mm.

11. External dimensions: 870 × 1,050 × 1,700 mm.
