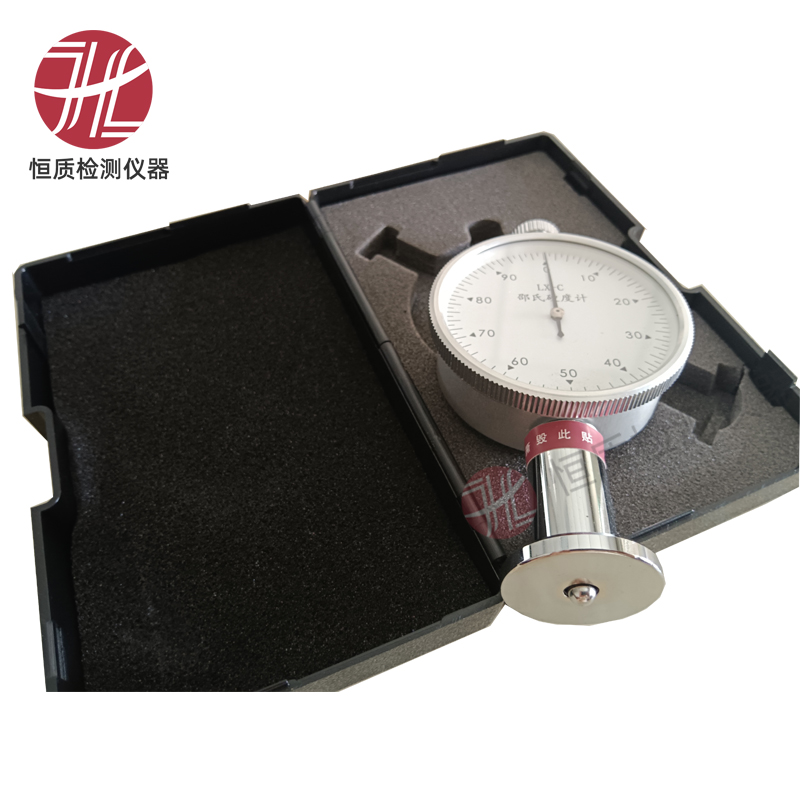

The LX-C Shore C hardness tester is intended for microporous footwear materials and similar rubber-plastic or foamed materials with a compression ratio of 50% and stress above 0.049 MPa.
Applicable requirements: GB/T 531-99, GB 2411-80, HG/T 2489-93 and JJG 304-2003.
Technical specifications:
1. Scale: 0–100 Shore C.
2. Indenter travel: 0–2.5 mm.
3. Indenter force: 0.55–8.05 N.
