HZ-9007 Oven-Type Tape Holding Power Tester

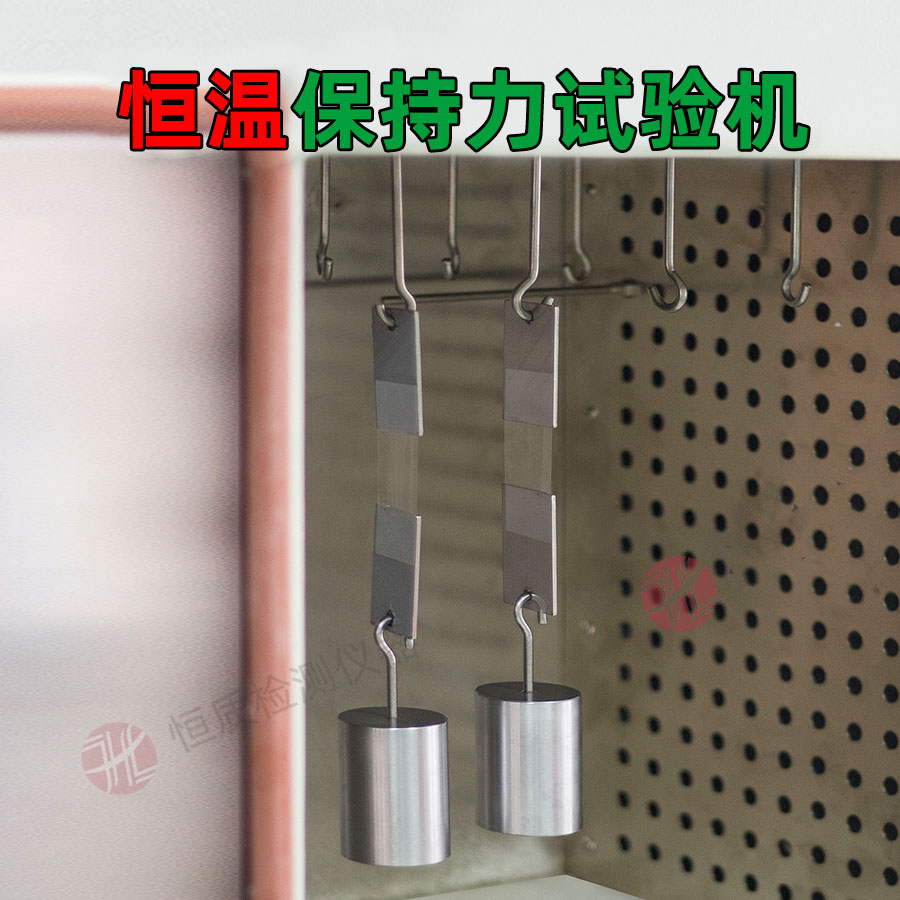

The HZ-9007 oven-type tape holding power tester applies a static load to pressure-sensitive tape in a hot-air chamber and records its holding time under the selected temperature and load.

Technical specifications:

1. Timing range: 1 hour to 9,999 hours 59 minutes 59 seconds.

2. Timing accuracy: 1 second.

3. Temperature range: ambient to 200°C; accuracy ±1°C.

4. Test weights: ten 1 kg weights.

5. Test plates: twenty SUS 304 stainless-steel plates.

6. Dimensions: 100 × 48 × 105 cm; weight: 100 kg.
