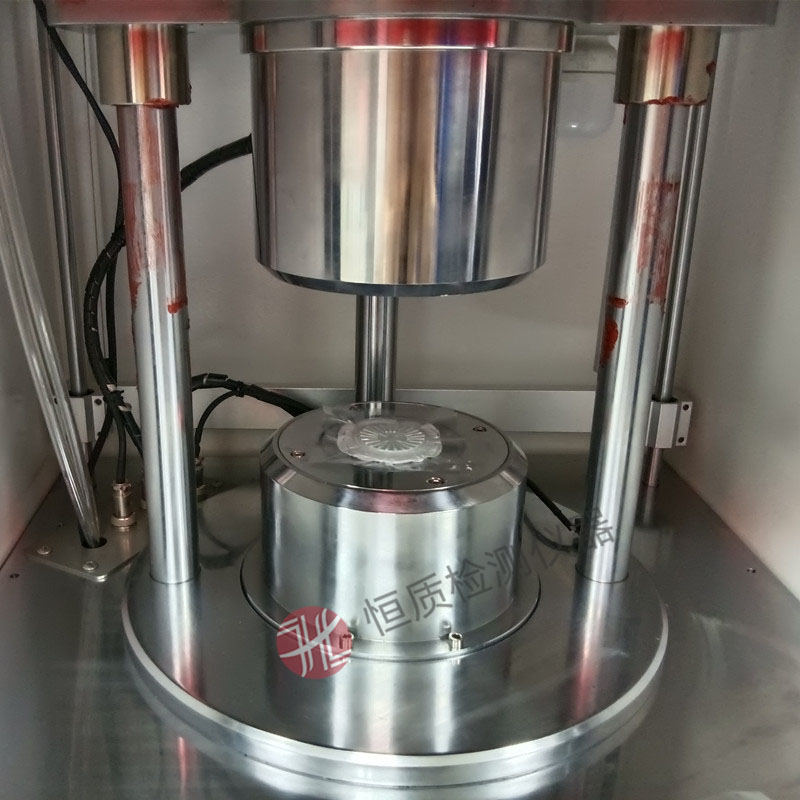

HZ-5001 Rotorless Rheometer

The HZ-5001 rotorless rheometer is used for rubber compound development, rapid quality inspection and process control. It accurately measures scorch time, cure time, cure index and torque characteristics to support formulation optimization.

Applicable standards: GB/T 16584, ASTM D5289 and ISO 6502.

Technical specifications:

1. Temperature range: ambient to 200°C.

2. Temperature fluctuation: ±0.15°C.

3. Torque resolution: 1/500,000.

4. Torque accuracy: 0.3%.

5. Torque units include N·m, N·cm, N·in, kN·m, kN·cm, kN·in, kg·m, kg·cm, kg·in, lb·m, lb·cm, lb·in, g·m, g·cm and g·in.

6. Temperature display resolution: 0.01°C.

7. Temperature recovery after die closure: less than 1.5 min.

8. Temperature units: °C, °F and K.

9. Acquisition rate: 200 samples/s.

10. Interface languages: English, Simplified Chinese and Traditional Chinese.

11. Calculated parameters: ts1, ts2, t10, t30, t50, t70, t90, Vc1 and Vc2.

12. Software interface: USB 2.0.

13. Printed results include date, time, temperature, cure and temperature curves, ML, MH and calculated cure parameters.
